Dyna-Form Jupiter

Dyna-Form Jupiter Clinical Mattress

The Dyna-Form Jupiter™ mattress can be used with patients having a medium to high risk of pressure ulcer development. Using modern foam designs, castellated on one side to aid pressure ulcer management, the mattress provides excellent patient comfort. It can be used without a turning programm, aiding moving and handling procedures, and can work comfortably with any electric profiling bed frame. This durable design uses only the very best CMHR foam and fabrics to provide a modern mattress complete with infection reducing cover.

Features & Benefits:

• Castellated foam (with tear duct cut out) provides patient comfort while maintaning excellent pressure redistribution
• Single sided cut surface - works without a turning programme
• Multi-stretch, vapour permeable fabric (impregnated with an anti-fungal agent) reduces shear and friction forces while assisting infection control policies
• ully sewn or high frequency welded* cover - prevents fluid ingress and aids decontamination processes (can be laundered up to 80°C)
• Fully replaceable parts - ensures good value for money

Warranty is 3 years on foam and cover

*welded cover option carries a small price premium

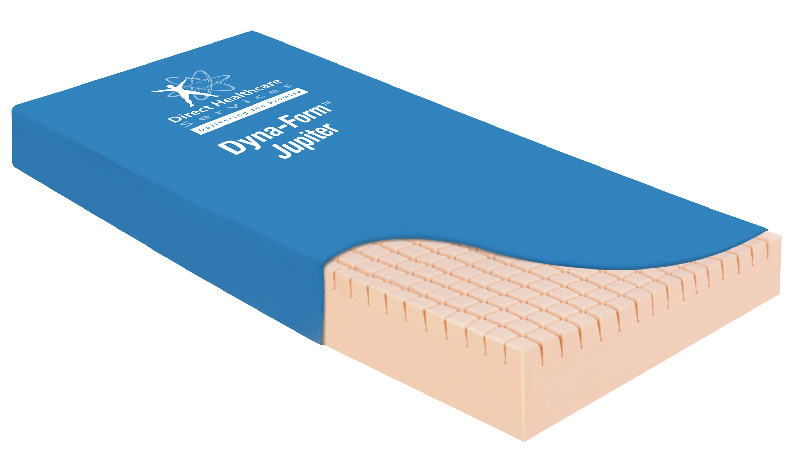

Dyna-Form Jupiter Mattress
Order Code: DF104

click on images to enlarge

Specifications:

Risk Category	Medium / High Risk
Weight Limit	165 kg (26 stone)
Dimensions L x W x H	1982 x 88 x 15 cm
Foam Density	34-36 kg/m3
Nominal Hardness	125 Newtons
Fatigue Class	Very Severe
Fire Retardancy	BS 7177 (Crib 5 Composite)
Mattress weight	13 kg
Hypo Chloride Solution Compatibility	1:100,000 parts diluted*

* or to be used in conjunction with
local infection control guidelines
