Medical Adjustable Beds

Clinical, Hospital Style Power Beds and Mattresses

Casa Nuova II

Casa Nuova II with metal tube mattress support

The Casa Nuova II has been designed to be easy to clean, and quick and simple to assemble or re-install with no tools required.

A key feature of the new design is that it is quicker to decontaminate after each patient use, ensuring cross contamination is kept to an absolute minimum.

Casa Nuova II is easily transported using our transport bracket system and can be stored in an upright position, minimising storage space required.

Maximum user weight 28 stone (180 kg).

Features & Benefits:

• Robust, stable fixed frame - easy to clean
• Quick release Dewart motors and control system
• Dewart lockable handset with head tilt as standard
• Detachable end actuator cable to control box connector
• Electric backrest, legrest and knee break
• Dual action headrest and knee break adjustment on handset to reduce shear when profiling
• Manual lower leg section levelling device
• 4-section mattress support, 2 motor adjustments. separable for transport

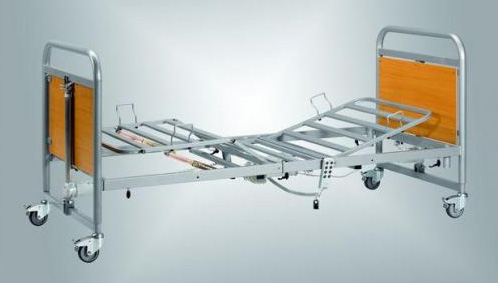

Casa Nuova II with metal tube mattress support
Order Code: 21984

Casa Nuova II with tilt function & battery backup
Order Code: 21985

Casa Nuova II Low with metal tube mattress support - Order Code: 21986

Casa Nuova II Low with tilt function & battery backup - Order Code: 21987

click on image to enlarge

Specifications:

Total weight	88 kg
Heaviest part	21 kg
Outer Dimensions W x L	102 x 213 cm
Maximum safe working load	200.kg
Maximum patient weight	180 kg
Height adjustment	40 to 80 cm
Adjustment of back section	0 to 70°
Foot section angle adjustment	0 to 20°
100mm dia 4 brake castors

back to Medical Beds index
