Casa Nuova

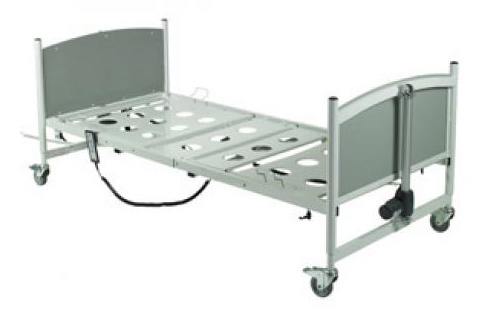

Casa Nuova

The Casa Nuova bed has been specifically designed using a polypropylene head and foot end, combined with a four section metal mattress support to assist with hygiene.

The bed is easily transported using the TLSU system, and can be stored in the upright position to minimise storage space.

Maximum user weight 25 stone (165 kg).

Features & Benefits:

• No tools required for assembly
• Transportation kit for storage or transport
• Quick release motor and actuators
• Height adjustable
• Electric backrest, legrest and knee break
• Manual lower leg section levelling device
• 4 brake castors
• Made from hygiene friendly materials
• 4 section electric profiling
• Lock out facility incorporated in handset
• 2 year warranty

Standard Casa Nuova
Order Code: 19952

Casa Nuova with Tilt Function and Battery Backup
Order Code: 19953

click on image to enlarge

Specifications:

Total weight	93 kg
Heaviest part	24 kg
Outer Dimensions W x L	103 x 212 cm
Mattress Support W x L	89 x 199 cm
Maximum safe working load	200.kg
Maximum patient weight	165 kg
Total height with raising mechanism	174 cm
Height adjustment	40 to 80 cm
Adjustment of back section	0 to 70°
Adjustment of thigh section	0 to 47°
Adjustment of lower leg section	0 to 20°
