Minimo

A revolution in compact, collapsible scooter design

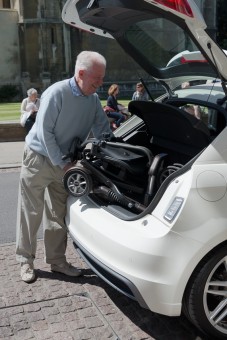

The new Minimo represents one of the most advanced, transportable designs that folds and fits into the boot of a car and requires no parts to be dismantled for storage. Its pioneering and straightforward folding mechanism is simply activated by a onehanded operation that requires the minimum of effort and is completed in seconds.

It represents one of the most advanced designs that folds and fits into the boot of a car and requires no parts to be dismantled for storage, with an overall folded weight of only a mere 26.65kg (58.8lbs).

Whether used for a day out in a car or for independence locally, the Minimo only requires a remarkably small amount of storage space when not in use. Therefore, the Minimo is the ideal choice for individuals with restricted room at home or in the car. This radically lightweight, yet robust scooter combines the benefits of strain-free lifting for end users whilst providing impressive drivability and rider comfort.

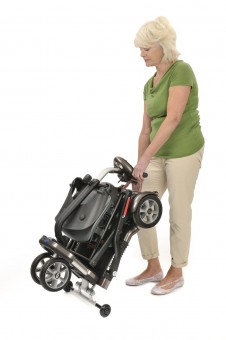

  • Folds in a single simple movement, effortlessly activated by one hand
  • Lightweight 26.65kg (58.8lbs) design for easy lifting and minimal space required for storage
  • 4mph (6.4km) top speed with a range up to 12 miles (20km)
  • Highly reliable 270w motor and 45ah S-Drive controller
  • 115kg (250lbs) user weight capacity
  • Market leading 820mm (32”) turning circle and 60mm (2.3”) ground clearance
  • Spacious floor well and ergonomic tiller
  • Combines high manoeuvrability and turning stability

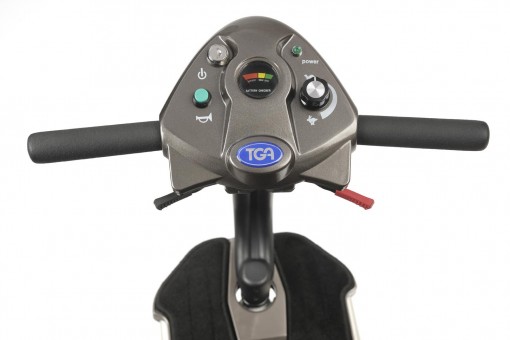

Ergonomically designed controls mounted on fully adjustable tiller



back to COMPACT Mobility Scooters index

Specifications:
Overall Length 36 in (930 mm)
Overall Width 19 in (485 mm)

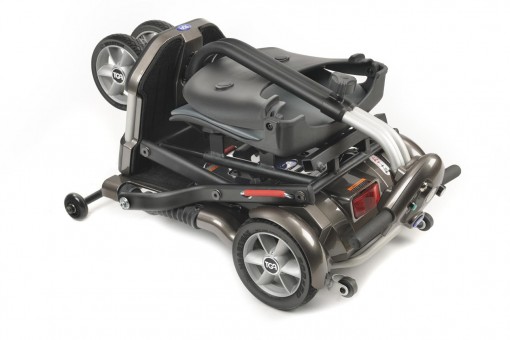

Folded Dimensions 29 x 19 x 17 in
750 x 485 x 450 mm
Seat Width 16 in (410 mm)
Weight without batts 52.9 lb (24kg)
Weight with std batts 72.4 lb (55kg)
Weight with Li-ion 58.5 lb (27kg)
Speed (variable) up to 4 mph (6.4 kph)
Turning Radius 32 in (820 mm)
Approx. Range 12 miles (20 km)
Battery size Std 2 x 12 v - 12 Ah
Battery size Li-Ion 1 - 24 v - 11.5 Ah
Controller Type 45 amp S-drive
Motor Type 4 pole - 270 W
Max Capacity 18 st (115 kg)
Fron Wheels 7 in (180 mm)
Rear Wheels 8 in (200 mm)
Max Gradient 10%
Ground Clearance 2.3 in (60 mm)

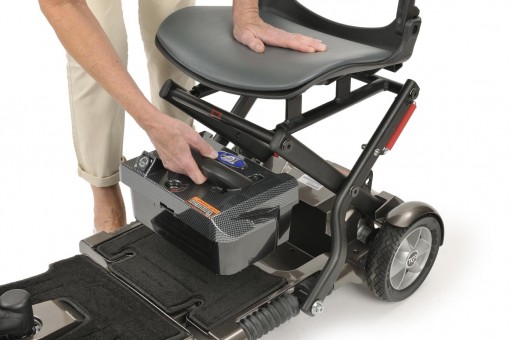

Can be fitted with standard batteries or lightweight Lithium Ion batteries.

ACCESSORIES available:
Arm Rest Bag
Oxygen Bottle Bag
Threshold Ramps
Vehicle Ramps
Rear Seat Bag
Saddle Bag
Scooter Cape
Walking Stick Bag

The new TGA Minimo delivers pioneering levels of transportability, comfort and safety in the ‘car boot’scooter class.
