Power Chairs

'Quantum' Powerchairs from Pride Mobility

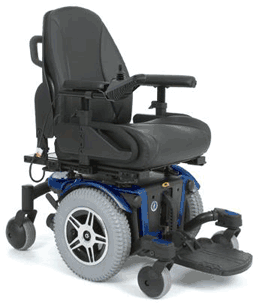

Quantum 600 and 600XL

Aggressive power, intuitive handling, and limitless possibilities.

Equipped with our patent pending Mid-Wheel 6, the Quantum 600 delivers maximum stability without compromising performance. The independent active OMNI-Castors (nylon spherical-shaped castors) raise and lower to compensate instantly for changes in the terrain and allow for smooth and stable transitions. In addition, the Q600 is equipped with powerful GLIDE Motors for added power and torque.

Quantum 600 SPECIFICATIONS
Drive Wheels	142 in	355 mm
Castor Wheels (front)	5 in solid	omni
Castor Wheels (rear)	6 in solid	omni
Overall Length	35.25 in	895 mm
Overall Width	23.5 in	600mm
Ground Clearance	3 in	76mm
Weight Capacity 600	21 Stone	136 kg
Weight Capacity 600XL	28.5 Stone	181 kg
Maximum Speed	4 mph	6 kph
Armrest Heght	200-300 mm	9-12 in

Drive Train: Two motor - Mid Wheel 6

Braking System: Intelligent Braking - electronic, regenerative disc brakes

Electronics: PG Drives VSI as standard Q Logic - Full colour display - (upgrade) PG Drives Pilot Plus (upgrade

Turning Radius: 20" (51 cm) (from)

Battery Charger: Off-board, 5 amp

Battery Requirements: Two x 12 volt - 55 amp batteries

Battery Weight: 38 lb (17 kg) (each)

Base Weight: 124 lb (56 kg) (refers to weight of base section only)

Suspension: ATX Suspension (Active-Trac with extra stability)

Available Model Options:
Synergy Seating, Tru ComfortSeating
Vogue Seating, Euro Comfort Seating
Seat Power Recline or Manual Recline
Power Tilt, 12" Seat Lift & Power Tilt
10" & 14' Waterfall Arm Pads
T Bar Footboard
Powered Elevating & Articulating Footboard
Swing Away Legrests
Rehab Headrest (choice of sizes)
Hip & Thigh Lateral Supports
Shape Lateral Supports
VSI Control System
Pilot Plus Control System
Q Logic Control System (Colour Display)
Attendant Control
Sip & Puff Controls
Buddy Buttons
Cane & Crutch Holder
Oxygen Bottle Holder
Cup Holder
Rear Basket     Lighting kit
Heavy Duty (HD) Upgrade
Puncture Proof Tyres
Stump & Linb Support       4 Point harness
